Compact size with
82 x 41 x 125 mm (W x H x D) of
dimension
-
Meets ultra compact ATX-based
application including Flex ATX, Mini-ITX and 1U
rack-optimized embedded computing platform solution.
-
High reliability with 100%
burn-in tested and 100% Hi-Pot tested
-
Safety Approvals, EMC compliance
-
ELECTRICAL SPECIFICATION
Input range : 95-132/190-264VAC,
switch selectable
Frequency : 47 - 63Hz
Input current : 6.5A @115VAC, 3.5A @230VAC
Inrush current : 35A @115VAC, 70A @230VAC cold start at 25°C
Efficiency : >65% @ full load, 115VAC
Maximum power (Po) : 120W
Hold–up time : >16ms min at full load @115VAC
Short circuit protection : All outputs
Over voltage protection : +3.3V / +5V / +12V
-
SAFETY STANDARD
UL 60950 , SA C22.2
No.60950, TUV EN60950, CB IEC 60950
-
EMI STANDARD
FCC Class B, CISPR22 Class
B, EN 55022 Class B, VCCI CE
-
DC OUTPUT & FEATURE
|

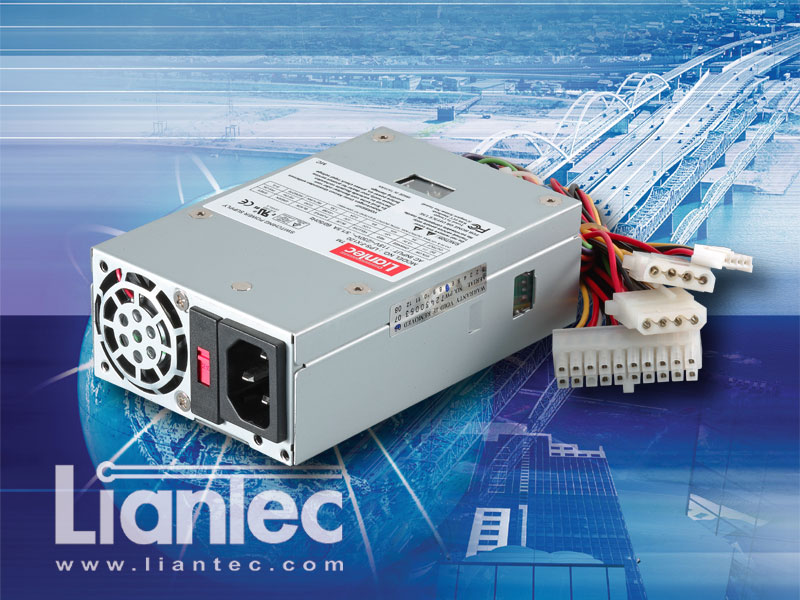

LPS-FX120 |
|
Output |
MIN
Loading |
MAX
Loading |
O/P
Regulation |
Ripple &
Noise |
|
+3.3V |
0.5A |
3A |
5% |
70mV |
|
+5V |
1A |
10A |
5% |
70mV |
|
+12V |
0.5A |
5A |
5% |
150mV |
|
-12V |
0A |
0.2A |
10% |
150mV |
|
+5Vsb |
0A |
1.5A |
5% |
70mV |
|
PW-OK |
P.G. :
100ms ~ 500ms |
|
PS-ON |
Remote |
|
COM. |
Return |
|
|
* Notice: +3.3V
& +5V share 50W of output |
|
