TBM-1442
series
Tiny-Bus Dual Gbit
Ethernet Bypass
Module
Dual Gbit Ethernet
with Bypass Function
and Mini-PCI Type-IIIB Socket |
 |
|
Key Features :
The TBM-1442 is a Tiny-Bus® PCI
Express dual bypass Gbit Ethernet module, offers dual PCIe based
Gbit Ethernet interfaces with auto bypass function, and one
mini-PCI socket for the industrial small form factor (SFF)
embedded x86-based networking computing applications.
-
Onboard dual PCIe-based Intel Gbit
Ethernet with auto-bypass function.
-
Mini-PCI socket for Wi-Fi WLAN or
other mini-PCI modules.
-
Liantec embedded Tiny-Bus®
Modular Extension Solution.
|

Liantec

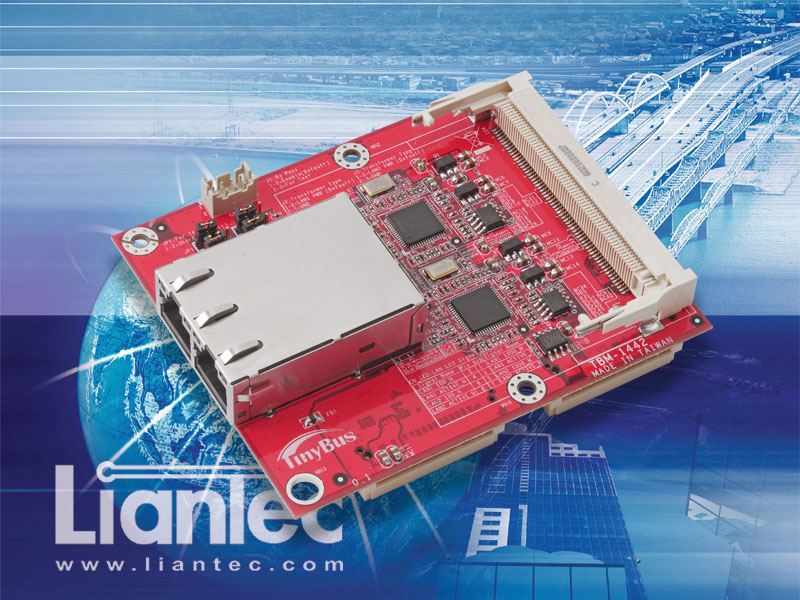

TBM-1442 Tiny-Bus PCIe Dual Gbit Ethernet Bypass Module |
Gallery
TBM-1442 Sample Enquiry |
|
|
General Specification
►
Tiny-Bus® Modular Extension Solution with two x1 PCI
Express and PCI bus
interfaces.
►
Onboard dual PCIe Intel 82574L Gbit Ethernet
controllers.
►
Supports bypass function with relays on RJ45 connectors.
►
10/100/1000BASE-TX
auto-switching, IEEE802.3U compliant.
►
Onboard Type-IIIB mini-PCI socket.
External and Internal
Connector
►
External dual RJ45
connectors with link / active LED
►
Onboard Mini-PCI type-IIIB
socket
►
Onboard Ethernet link /
active indicated LEDs connector for front panel
connection. |
|
 |
|
 |

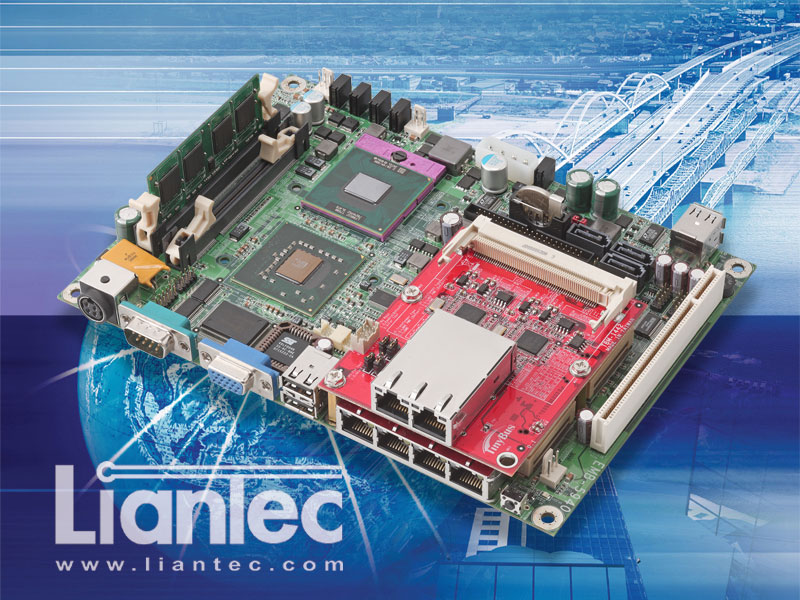

TBM-1442 Tiny-Bus®
PCI Express dual Gbit Ethernet bypass module on
the EMB-5940 5.25” drive-size Intel Core2 Duo
mobile Express networking EmBoard, supports
additional dual Gbit Ethernet with auto-bypass
function. |
|
|
 |
|
