TBM-1222 series
Tiny-Bus Video Capture
Module
with 4 Channel / 120
fps (NTSC / PAL) Input
and Mini-PCI Type-IIIA/B Socket |
 |
|
Key Features :
The TBM-1222 is a Tiny-Bus® video
capture module with onboard four PCI-based BT878A controllers
with 120 fps of video capture capacity for the DVR surveillance
and other small form factor (SFF) industrial x86-based computing
applications.
-
Onboard four BT878A controllers
with up to 120 frame per second of video capture capacity.
-
Four BNC video input interfaces.
-
One mini-PCI type-III A/B
socket.
-
Liantec embedded Tiny-Bus®
Modular Expansion Solution.
|

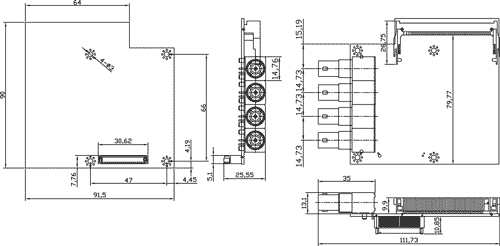

Gallery
TBM-1222 Sample Enquiry |
|
|
General Specification
►
Tiny-Bus® Modular Expansion Solution with PCI-based bus
interface.
►
Onboard four Conexant Fusion 878A video capture
controllers
►
Supports 4 channel / 120 frames per second
of video input.
►
External four BNC connectors
►
Onboard Mini-PCI Type-IIIA/B socket.
External / Internal
Connector
►
External four BNC connectors
►
Onboard 124-pin Mini-PCI
Type-III socket |
|
 |
|
|
 |
|
ITX-6965 |
Mini-ITX Intel
GME965 Core 2 Duo Mobile Express EmBoard
with GMA X3100 VGA,
LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II
300
and Tiny-Bus Modular
Expansion Solution
Recommend :
TBM-1420 Tiny-Bus PCI
Express Video Capture Module |
|
ITX-6945 |
Mini-ITX Intel
945GME Core Mobile Express EmBoard
with GMA950 VGA,
LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II
300
and Tiny-Bus Modular
Expansion Solution
Recommend :
TBM-1420 Tiny-Bus PCI
Express Video Capture Module |
|
ITX-6910 |
Mini-ITX Intel
Mobile Pentium M / Celeron M Express EmBoard
with GMA900 VGA,
LVDS, HD Audio, Gbit Ethernet, SATA
x16 PCI Express
Graphics Slot and Tiny-Bus Modular Expansion
Solution
Recommend :
TBM-1420 Tiny-Bus PCI
Express Video Capture Module |
|
ITX-6900 |
Mini-ITX Intel
Mobile Pentium M / Celeron M Express EmBoard
with GMA900 VGA,
LVDS, HD Audio, Gbit Ethernet, SATA
and Tiny-Bus Modular
Expansion Solution
Recommend :
TBM-1420 Tiny-Bus PCI
Express Video Capture Module |
|
ITX-6815 |
Mini-ITX Intel
Mobile Pentium M / Celeron M EmBoard
with VGA, LVDS,
Audio, Gbit Ethernet, Single DC Power Operating
and Tiny-Bus Modular
Expansion Solution |
|
ITX-6810 |
Mini-ITX Intel
Mobile Pentium M / Celeron M EmBoard
with VGA, LVDS,
Audio, Gbit Ethernet
and Tiny-Bus Modular
Expansion Solution |
|
ITX-6800 |
Mini-ITX Intel
Mobile Pentium M / Celeron M EmBoard
with VGA, LVDS,
Audio, Dual Gbit Ethernet, IEEE1394 Firewire
and Tiny-Bus Modular
Expansion Solution |
|
ITX-6700 |
Mini-ITX AMD
Embedded Geode NX EmBoard
with VGA, Audio,
Gbit Ethernet and Tiny-Bus Modular Expansion
Solution |
|
EMB-5740 |
5.25" Drive-size VIA
C7-Eden Multi-Ethernet EmBoard
with VGA, Four Gbit
Ethernet, CompactFlash / Mini-PCI Socket
and Tiny-Bus Modular
Expansion Solution |
|
EMB-3700 |
3.5" Drive-size VIA
C7-Eden Multimedia EmBoard
with VGA,
MPEG-2/4/WMV9 Accelerator, Ethernet,
CompactFlash Socket
and Tiny-Bus Modular
Expansion Solution |
|
|
 |
|
TBM-1222B4P |
Tiny-Bus 4-CH / 120
fps Video Capture and Mini-PCI Module
with Four BNC Video
Input and 124-pin
Mini-PCI Type-III socket |
|
|
 |
|
