ITX-6800
series
Mini-ITX Intel Pentium M
嵌入式主板
整合 VGA, LVDS, 雙千兆網, IEEE1394,
音效
|

|
- Mini-ITX Form Factor @ 170 x 170mm
- Intel Pentium M / Celeron M
Platform
- Supports 1 GBytes DDR SDRAM
- Intel GMCH Built-in VGA with LVDS
- Onboard AC97 3D Audio, USB 2.0 Ports
- Optional Dual Intel / RTL Gbit
Ethernet
- Optional IEEE1394 Firewire
Interface
- Optional DVI, TV-out and Mini-PCI
Module
- Tiny-Bus® Modular Extension
Solution
with Intel DVO / PCI-based
Module
- Compact Size @ 170 x 170 mm (L x W)
|

Liantec
ITX-6800 Mini-ITX Intel Pentium M / Celeron M EmBoard |

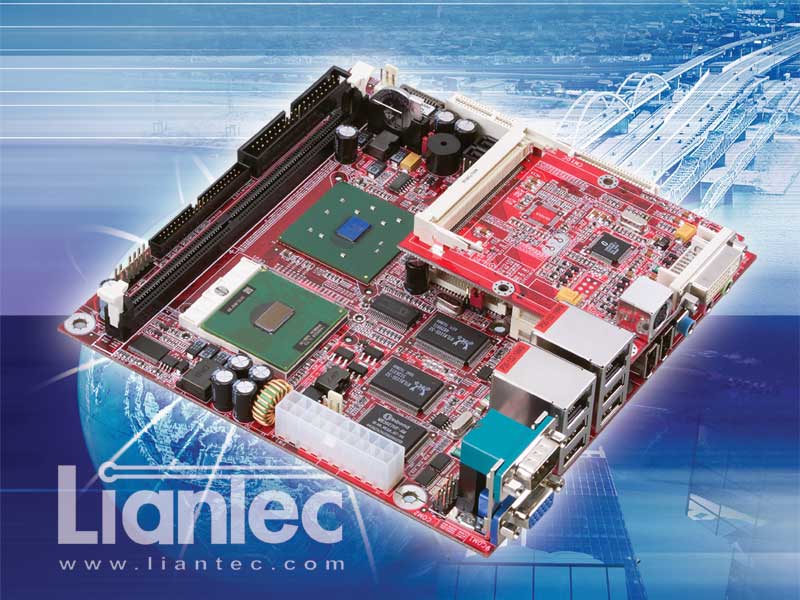

Enlarge
the Photo
ITX-6800 Sample Enquiry |
產品簡介
|
Liantec ITX-6800 is the Mini-ITX
embedded motherboard based on Intel Centrino Pentium M /
Celeron M platform. With Intel’s mobile technology, the
Liantec ITX-6800 offers the high processing capacity for the
embedded computing application. To meet the wide range of
embedded application, Liantec ITX-6800 features the flexible
expansibility with onboard Tiny-AGP/PCI interface, provides
the embedded board-to-board AGP / DVO / PCI-based
expansibility with modular daughterboard, including DVI,
SDTV, HDTV, WLAN, mini-PCI, mini-AGP, PCMCIA,
multi-Ethernet, switch hub, video capture, MPEG encoder,
TV-tuner and customized AGP / PCI-based interface modules
for industrial embedded computing application. |

|
產品特色
|
-
Embedded / long-term supply
Intel mobile Pentium M / Celeron M platform.
-
Optional onboard Intel ULV Celeron M 600 MHz CPU for fanless
operating.
-
Intel 855 / 852 GMCH built-in VGA with up to 64 MB of shared
video memory.
-
Onboard single- / dual-channel 18-bit LVDS TFT LCD and DVO
interface.
-
Onboard single / dual Intel / RTL 10/100/1000Mbps Gigabit
Ethernet interface.
-
Optional bootable Serial-ATA (SATA) with RAID 0/1 and
IEEE1394 interface.
-
Liantec
Tiny-Bus® modular expansibility supports PCI and
AGP/DVO-based interface modules including DVI, SDTV, HDTV,
WLAN, mini-PCI, mini-AGP, PCMCIA, video capture, MPEG
encoder, TV-tuner, multi-Ethernet, switch hub, and
customized function modules for industrial embedded
computing application.
-
Embedded enclosure / barebone hardware platform solution is
available.
|

|
產品規格 |
Form Factor |
Mini-ITX / Mini-FlexATX form factor at 170 x 170
mm |
CPU |
Intel Mobile
Pentium M /
Celeron M CPU @ 533/400MHz FSB
Intel Embedded
Pentium M / Celeron M CPU Reference
µFC-PGA Socket Type
- PM745: Pentium M
745 with 1.8GHz / 400FSB / 2MB Cache
- CM370: Celeron M
370 with 1.5GHz / 400FSB / 1MB Cache
µFC-BGA Onboard Mounted Type (LV, ULV Version)
for OEM
- PM738: Pentium M
LV 738 with 1.4GHz / 400FSB / 2MB
- CM373: Celeron M
ULV 373 with 1.0GHz / 400FSB / 512KB
- ULV Celeron M
600MHz CPU with 512KB L2 Cache |
Memory |
One 184-pin DDR DIMM
socket supports 1 GBytes DDR SDRAM |
Chipset |
Intel 82855GME /
82852GM GMCH and ICH4(-M) chipset |
Watchdog Timer |
Programmable generates NMI or system reset
watchdog timer
with 1 to 255 sec. / min. of time out value |
Power Management |
ACPI 1.0 compliant, supports power saving mode
with ATX PSU |
Real Time Clock |
Intel ICH4 chipset
built-in RTC with onboard lithium battery |
Expansive Interface |
One PCI slot supports two bus master 32-bit / 33
MHz PCI bus
(one PCI bus master
shared with Liantec Tiny-PCI)
Liantec Tiny-Bus with AGP / PCI / DVO bus
Supports 4xAGP / PCI / DVO-based daughter
modules
-
4xAGP Graphics Module
-
PCI-based Interface Module
-
Intel DVO-based Module |
PCI Enhanced IDE |
40-pin primary and 44-pin
secondary UltraATA100 IDE ports |
Serial-ATA (SATA)
(Optional) |
Optional onboard Serial ATA
(SATA) interface
Dual bootable SATA ports,
support RAID level 0 or 1 |
VGA Interface |
Intel 855 / 852 GMCH built-in
Intel Extreme Graphics 2
with
Intel Dynamic Video Memory Technology up to 64 MB.
External DB15 female connector for CRT on rear I/O panel |
LVDS LCD Interface |
Intel 855 / 852 GMCH
built-in VGA core and LVDS transmitter
Supports single-/dual-channel 18-bit LVDS TFT LCD
Onboard 40-pin Hirose
DF13-40DP-1.25V connector |
Ethernet Interface
(Optional Dual Ports) |
Optional single /
dual Intel / Realtek (RTL) Gigabit Ethernet
10/100/1000BASE-TX auto-switching, IEEE802.3U
compliant
ITX-6800L with single RTL Gigabit Ethernet
interface
ITX-6800L2 with dual RTL Gigabit Ethernet
interface
ITX-6800N with single Intel Gigabit Ethernet
interface
ITX-6800N2 with dual Intel Gigabit Ethernet
interface
External single / dual RJ45 connector with LED
on rear I/O panel |
Audio Interface |
Intel ICH4 chipset with onboard ACL655 AC97 3D
audio codec
5.1 channel, line-in, line-out, mic-in, CD-in
and S/P DIF interface |
Hi-Speed USB 2.0 |
Intel ICH4 chipset
built-in Hi-Speed USB 2.0 interface
with 480 Mbps of data transfer rate and bootable
selection in BIOS
6 USB ports with 4 external and 2 internal ports |
IEEE1394 Firewire
(Optional) |
Optional onboard IEEE1394 interface
with dual external 1394 ports on rear I/O panel |
Multi-I/O Port |
Dual RS232 serial ports with one external and
one internal port
6 x Hi-Speed USB 2.0 ports with 4 external and 2
internal ports |
External I/O Port |
DB15 female VGA and DB9 male COM port
Dual USB and RJ45
Ethernet port
Dual USB ports (with
RJ45 Ethernet port for dual Ethernet option)
Dual IEEE1394
Firewire port (option)
Line-in, mic-in,
line-out Audio ports
Other external ports on add-on modules |
Solid State Flash Disk |
DiskOnModule Flash
Disk
IDE-based, bootable, driver
free DiskOnModule flash disk
Flash memory capacity up to
8 GBytes (and beyond) |
Liantec Tiny-Bus
with
PCI & Intel DVO
 |
ITX-6800 with
Tiny-Bus Modular Extension
Solution
Supports Intel DVO /
PCI-based Tiny-Bus Module
TBM-15DVO:
Intel DVO DVI, TV-out, Mini-PCI (WLAN) Module
TBM-1200:
PCI Dual Mini-PCI
Type-IIIA/B Module
TBM-1210:
PCI Dual PCMCIA
CardBus and Mini-PCI Module
TBM-1220:
PCI Video Capture
and Mini-PCI Module
TBM-1222:
PCI 4-CH/120 fps
Video Capture and Mini-PCI Module
TBM-1230:
PCI 4-Port Switch
Hub and Mini-PCI Module
TBM-1250:
PCI 4-/8-Port
RS232 Serial Port Module
Other customized AGP / DVO / PCI-based Tiny-Bus
modules for ODM / OEM project based on ITX-6800
EmBoard. |
Environment |
Power Requirement: onboard 20-pin ATX power
connector
Board Dimension: 170 x 170 mm (L x W)
Operation Temperature: 0 ~ 60oC (32 ~
140oF) |
|
|
Download datasheet @ PDF format
 |

|
訂購資訊
|
|
|
|
|
Mini-ITX Intel Embedded Pentium M / Celeron M EmBoard
with VGA, LVDS, Single RTL
Gigabit Ethernet, USB 2.0
and Liantec Tiny-Bus®
with PCI and AGP/DVO Expansibility
(without SATA and IEEE1394
Firewire Interfaces)
(without Pre-installed Intel
Pentium M / Celeron M CPU)
|
|
Mini-ITX Intel Embedded Pentium M 745 EmBoard
with VGA, LVDS, Single RTL
Gigabit Ethernet, USB 2.0
and Liantec Tiny-Bus®
with PCI and AGP/DVO Expansibility
and
Pre-installed Intel Pentium M 745 1.8GHz/2MB CPU
|
|
Mini-ITX Intel Embedded Celeron M 370 EmBoard
with VGA, LVDS, Single RTL
Gigabit Ethernet, USB 2.0
and Liantec Tiny-Bus®
with PCI and AGP/DVO Expansibility
and
Pre-installed Intel Celeron M 370 1.5GHz/1MB CPU
|
|
Mini-ITX Intel Embedded Pentium M LV 738 EmBoard
with VGA, LVDS, Single RTL
Gigabit Ethernet, USB 2.0
and Liantec Tiny-Bus®
with PCI and AGP/DVO Expansibility
and
Onboard Intel Pentium M LV 738 1.4GHz/2MB CPU
|
|
Mini-ITX Intel Embedded
Celeron M LV 373 EmBoard
with VGA, LVDS, Single RTL
Gigabit Ethernet, USB 2.0
and Liantec Tiny-Bus®
with PCI and AGP/DVO Expansibility
and
Onboard Intel ULV Celeron M 373 1.0GHz/512KB
CPU
|
|
Mini-ITX Intel Embedded Celeron M 600 EmBoard
with VGA, LVDS, Single RTL
Gigabit Ethernet, USB 2.0
and Liantec Tiny-Bus®
with PCI and AGP/DVO Expansibility
and
Onboard Intel ULV Celeron M 600MHz/512KB CPU
|
|
Mini-ITX Intel Embedded Pentium M / Celeron M EmBoard
with VGA, LVDS, Single RTL
Gigabit Ethernet, USB 2.0
with TBM-15DVO
Module, with DVI, TV-out and Mini-PCI
(without Pre-installed Intel
Pentium M / Celeron M CPU)
|
|
Mini-ITX Intel Embedded Pentium M 745 EmBoard
with VGA, LVDS, Single RTL
Gigabit Ethernet, USB 2.0
with TBM-15DVO
Module, with DVI, TV-out and Mini-PCI
and
Pre-installed Intel Pentium M 745 1.8GHz/2MB
CPU
|
|
Mini-ITX Intel Embedded Celeron M 370 EmBoard
with VGA, LVDS, Single RTL
Gigabit Ethernet, USB 2.0
with TBM-15DVO
Module, with DVI, TV-out and Mini-PCI
and
Pre-installed Intel Celeron M 370 1.5GHz/1MB
CPU
|
|
Mini-ITX Intel Embedded Pentium M / Celeron M EmBoard
with VGA, LVDS,
Dual RTL Gigabit Ethernet,
USB 2.0
Onboard
IEEE1394 Firewire and SATA Interface
and Liantec Tiny-Bus®
with PCI and AGP/DVO Expansibility
(without Pre-installed Intel
Pentium M / Celeron M CPU)
|
|
Customized OEM configuration
based on existing ITX-6800 with optional onboard interfaces,
compatible Intel CPU, Tiny-Bus® PCI/AGP/DVO-based
modules and other integration service.
|
|
 |
準系統方案 |
|
|
|
LianPC-4680 |
Standalone
Mini-ITX Intel Pentium M Platform |
|
- Standalone Compact Mini-ITX Pentium M /
Celeron M Platform
with
270
x 75 x 200 mm (W x H x D)
-
ITX-6800
Mini-ITX
Pentium M / Celeron M EmBoard
- Intel GMCH Built-in VGA, Onboard Gbit
Ethernet, Audio
-
Onboard Dual Gbit
Ethernet, IEEE1394 Firewire
- Optional Intel
DVO-based DVI / TV-out Tiny-Bus Module
-
PCI-based Tiny-Bus Modular Extension Solution
- External 1 x Slim
ODD, Internal 1 x 3.5" / 2.5" HDD
- Internal AC/DC
120W Mini-ITX Power Supply |
|
|
|

|
|
|
|
