  EPX-8800
series
Half-size ePCI-X Embedded Pentium M SHB
with VGA, LVDS, SATA, GbE, USB 2.0, Audio
and 64-bit / 66 MHz PCI-X / PCI Expansibility
|
- PICMG Half-size ePCI-X Platform
- Intel Pentium M / Celeron M Processor
- 1 GBytes DDR266/333 SDRAM / ECC
- Intel Extreme Graphics 2 Technology
- Single / Dual Channel 18-bit LVDS
- Intel GbE and Serial-ATA (SATA) Interface
- 5.1 Channel & S/P DIF AC97 3D Audio
- Hi-Speed USB 2.0 with 480 Mbps
- Supports 64-bit / 66 MHz PCI-X or PCI
- External Dual USB Ports on Bracket
- Compact Size @ 191 x 122 mm (L x W)
|

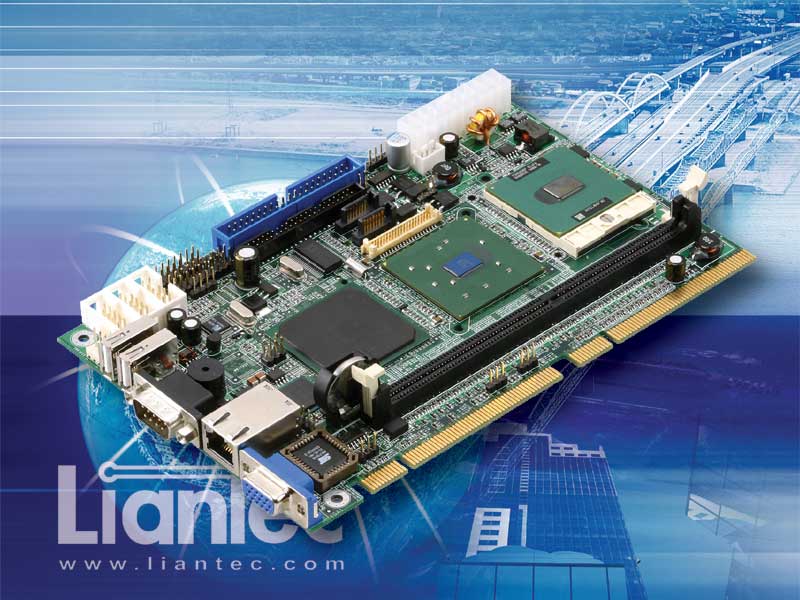

Enlarge the Photo
EPX-8800 Sample Enquiry |
|
|
|
|
Overview
|
|
The Liantec EPX-8800 is an
industrial PICMG ePCI-X (Embedded PCI-X) SHB (System Host
Board) based on Intel mobile Pentium M platform, features
the Intel low power / high performance computing capacity,
64-bit / 66 MHz PCI-X expansibility at half-size board size
for the compact, low power, high performance, embedded,
flexible and expansible computing application. |
|
|
Key Feature
|
-
PICMG half-size ePCI-X (Embedded
PCI-X) SHB (System Host Board).
-
Embedded / long-term supply
Intel mobile Pentium M / Celeron M platform.
-
Optional onboard Intel ULV
Celeron M 600 MHz CPU for fanless operating.
-
One DIMM socket supports 1GB DDR
SDRAM with optional ECC.
-
Intel 855GME GMCH built-in VGA
with up to 64 MB of shared video memory.
-
Onboard single-/dual-channel
18-bit LVDS TFT LCD interface.
-
Intel 6300ESB
ICH-H chipset with (1) four bus master 64-bit / 66 MHz
PCI-X; (2) four bus master 32-bit / 33 MHz of expansibility.
-
Onboard Intel PRO/1000 GbE
Gigabit Ethernet interface.
-
Bootable
Serial-ATA (SATA) ports with 150Mbps of data transfer
bandwidth.
-
Dual parallel-ATA (PATA) PCI
Enhanced IDE ports with 40-/44-pin box header.
-
External dual bootable /
hot-swappable Hi-Speed USB 2.0 ports on bracket.
-
Onboard bootable / driver free
CompactFlash solid state flash disk interface.
-
Standard PICMG ePCI-X compact
board size with 191 x 122 mm (L x W).
-
Embedded enclosure / barebone
hardware platform solution is available.
|
|
|
|
Specification
|
|
Form Factor |
PICMG ePCI-X half-size SHB form factor at 191 x 122 mm |
|
CPU |
Intel Mobile
Pentium M /
Celeron M CPU @ 533/400MHz FSB
Intel Embedded
Pentium M / Celeron M CPU Reference
µFC-PGA Socket Type
- PM745: Pentium M
745 with 1.8GHz / 400FSB / 2MB Cache
- CM370: Celeron M
370 with 1.5GHz / 400FSB / 1MB Cache
µFC-BGA Onboard Mounted Type (LV, ULV Version)
for OEM
- PM738: Pentium M
LV 738 with 1.4GHz / 400FSB / 2MB
- CM373: Celeron M
ULV 373 with 1.0GHz / 400FSB / 512KB
- ULV Celeron M
600MHz CPU with 512KB L2 Cache |
|
Memory |
One 184-pin DDR DIMM socket
Supports 1 GBytes DDR SDRAM with optional ECC |
|
Chipset |
Intel 82855GME GMCH and 6300ESB ICH-H chipset |
|
Watchdog Timer |
Programmable generates NMI or system reset watchdog timer
with 1 to 255 sec. / min. of time out value |
|
Power Management |
ACPI 1.0 compliant, supports power saving mode with ATX PSU |
|
Real Time Clock |
Intel ICH-H chipset built-in RTC with onboard lithium battery |
|
Expansive Interface |
PICMG ePCI-X with four bus master 64-bit / 66 MHz PCI-X or
four bus master 32-bit / 33 MHz PCI
bus interface via backplane |
|
PCI Enhanced IDE |
40-pin primary and 44-pin secondary UltraATA100 IDE ports |
|
Serial-ATA (SATA) |
Intel ICH-H chipset built-in Serial ATA (SATA) controller
Dual bootable SATA ports, optional RAID level 0 or 1 |
|
VGA Interface |
Intel 855GME GMCH built-in Intel Extreme Graphics 2
with Intel Dynamic Video Memory Technology up to 64MB.
External DB15 female connector for CRT on bracket |
|
LVDS LCD Interface |
Intel 855GME GMCH built-in VGA core and LVDS transmitter
Supports single-/dual-channel 18-bit LVDS TFT LCD
Onboard 40-pin Hirose DF13-40DP-1.25V connector |
|
Ethernet Interface |
Intel PRO/1000MT Gigabit Ethernet interface
10/100/1000BASE-TX auto-switching, IEEE802.3U compliant
External RJ45 connectors with LED on bracket |
|
Audio Interface |
Intel ICH-H chipset with onboard ACL655 AC97 3D audio codec
with line-in, line-out, mic-in, and CD-in interfaces |
|
Hi-Speed USB 2.0 |
Intel ICH-H chipset built-in Hi-Speed USB 2.0 interface
with 480 Mbps of data transfer rate and bootable selection in BIOS
4 USB ports with 2 external on bracket and 2 internal ports |
|
Multi-I/O Port |
Dual RS232 serial ports with one external and one internal port
4 x Hi-Speed USB 2.0 ports with 2 external and 2 internal ports |
|
External I/O Port
on Bracket |
Dual USB ports
DB9 male COM port
RJ45 Ethernet with LED
DB15 female VGA port |
|
Solid State Flash Disk |
CompactFlash Card
CompactFlash socket supports CompactFlash Card (CFC)
Support
PIO mode 4 and Multi-Word 2 (MW-2, WMDMA-2)
Default setting as secondary IDE port at master mode
Bootable, driver free IDE-based flash disk
Flash memory capacity up to
8 GBytes (and beyond)
DiskOnModule Flash Disk
IDE-based, bootable, driver free DiskOnModule flash disk
Support
PIO mode 4 and Multi-Word 2 (MW-2, WMDMA-2)
Flash memory capacity up to
8 GBytes (and beyond) |
|
Environment |
Power Requirement: onboard 20-pin ATX power connector
Board Dimension: 191 x 122 mm (L x W)
Operation Temperature: 0 ~ 60oC (32 ~ 140oF) |
|
|
|
Download
datasheet @ PDF format
 |
|
|
Ordering Guide
|
| |
|
|
|
|
|
Half-size ePCI-X Embedded Pentium M / Celeron M SHB
with VGA, LVDS, SATA, GbE, USB 2.0, Audio and CF Socket
(without Pre-installed Intel Pentium M / Celeron M CPU)
|
|
|
Half-size ePCI-X Embedded Pentium M 745 SHB
with VGA, LVDS, SATA, GbE, USB 2.0, Audio and CF Socket
and Pre-installed Intel Pentium M 745 1.8GHz/400/2MB CPU
|
|
|
Half-size ePCI-X Embedded Celeron M 370 SHB
with VGA, LVDS, SATA, GbE, USB 2.0, Audio and CF Socket
and Pre-installed Intel Celeron M 370 1.5GHz/400/1MB CPU
|
|
|
Half-size ePCI-X Embedded Pentium M
LV 738 SHB
with VGA, LVDS, SATA, GbE, USB 2.0, Audio and CF Socket
and
Onboard Intel Pentium M
LV 738 1.4GHz/400/2MB CPU
|
|
|
Half-size ePCI-X Embedded Celeron M
ULV 373 SHB
with VGA, LVDS, SATA, GbE, USB 2.0, Audio and CF Socket
and
Onboard Intel Celeron M
ULV 373 1GHz/400/512KB CPU
|
|
|
Half-size ePCI-X Embedded Celeron M 600 MHz SHB
with VGA, LVDS, SATA, GbE, USB 2.0, Audio and CF Socket
and Onboard Intel ULV Celeron M 600MHz/400/512KB
CPU
|
|
|
Customized OEM configuration
based on existing EPX-8800 with optional onboard interfaces,
compatible Intel CPU, optional onboard interfaces and other
integration service.
|
|
|
|
|
|
|
