TBM-1441
series
Tiny-Bus PCIe Multiple
Gbit Ethernet Module
with Four Intel 82574L
Gbit Ethernet
and Mini-PCI Type-IIIA/B
Socket |
 |
|
|
Key Features :

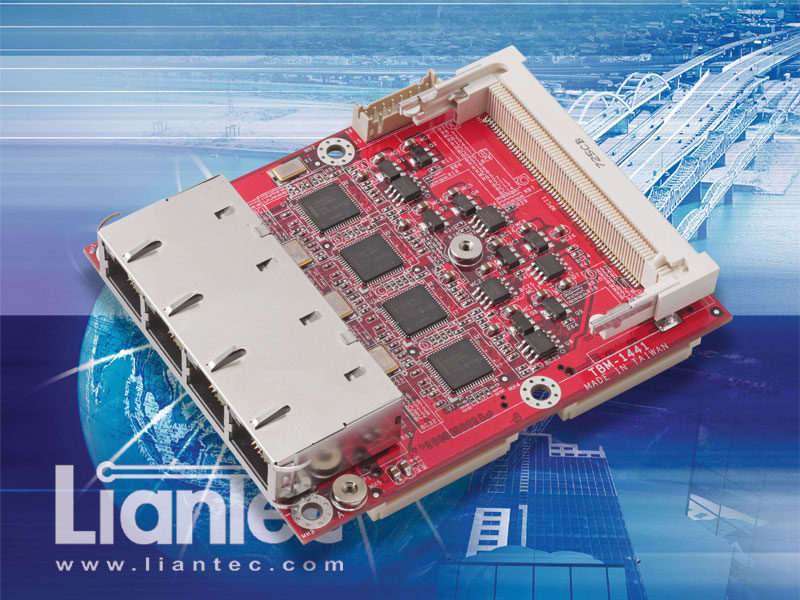

The TBM-1441 is a Tiny-Bus® PCI
Express multiple Gbit Ethernet module, offers four PCIe based
Gbit Ethernet interfaces and one mini-PCI socket for the
industrial small form factor (SFF) embedded x86-based computing
applications.
-
Onboard four PCI Express based Intel
82574L Gbit Ethernet controllers.
-
Mini-PCI socket for Wi-Fi WLAN or
other mini-PCI modules.
-
Liantec embedded Tiny-Bus®
Modular Extension Solution.
|
|
Liantec
TBM-1441 Tiny-Bus PCIe Multiple Gbit Ethernet Module |
Gallery
TBM-1441 Sample Enquiry |
|
|
|
|
|
General Specification
►
Tiny-Bus® Modular Extension Solution with four x1 PCI
Express and PCI bus interface.
►
Onboard four x1 PCIe Intel 82574L Gbit Ethernet
controllers.
►
10/100/1000BASE-TX
auto-switching, IEEE802.3U compliant.
►
Onboard Type-IIIA/B mini-PCI socket.
External and Internal
Connector
►
External four RJ45
connectors with link / active LED
►
Onboard Mini-PCI type-IIIA/B
socket
►
Onboard Ethernet link /
active indicated LEDs connector for front panel
connection. |
|
|
 |
 |

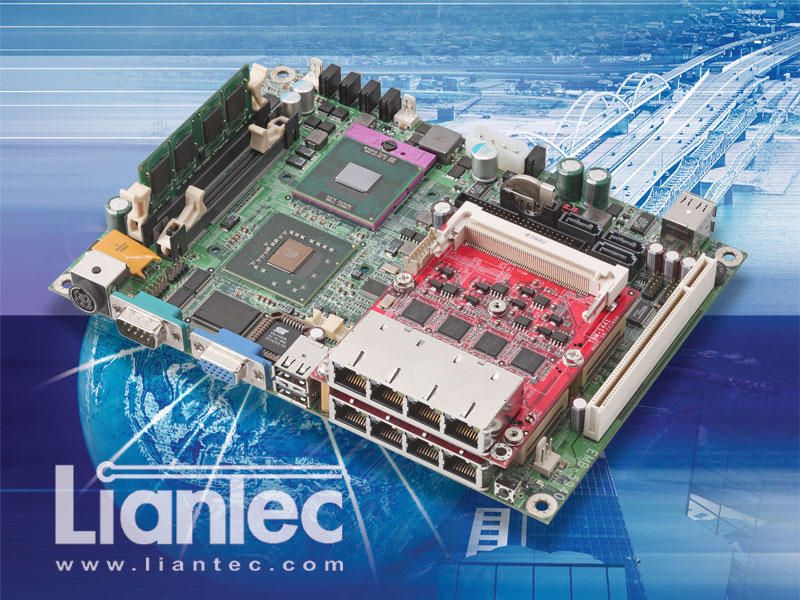

TBM-1441 Tiny-Bus®
PCI Express multiple Gbit Ethernet module on the
EMB-5940 5.25” Intel Core2 Duo mobile Express
multiple Gbit Ethernet EmBoard, supports four
additional Gbit Ethernet and mini-PCI
interfaces. |
|
|
|
|
|
