TBM-16AM72 series

Key Features :

The TBM-16AM72 Tiny-Bus® graphics module is based on the x16 PCI-Express AMD-ATi embedded Radeon E2400 M72 GPU with on-chip 128MB GDDR3 of video memory, offering the embedded modular 3D graphics solution for the industrial small form factor (SFF) embedded x86-based graphics computing applications.

• Easy-to-upgrade with low power, mobile x16 PCI Express based advanced graphics solution with onboard independent GPU and video memory.

• DVI-I (DVI/VGA) and LVDS interfaces.

• Liantec embedded Tiny-Bus® Modular Extension Solution.

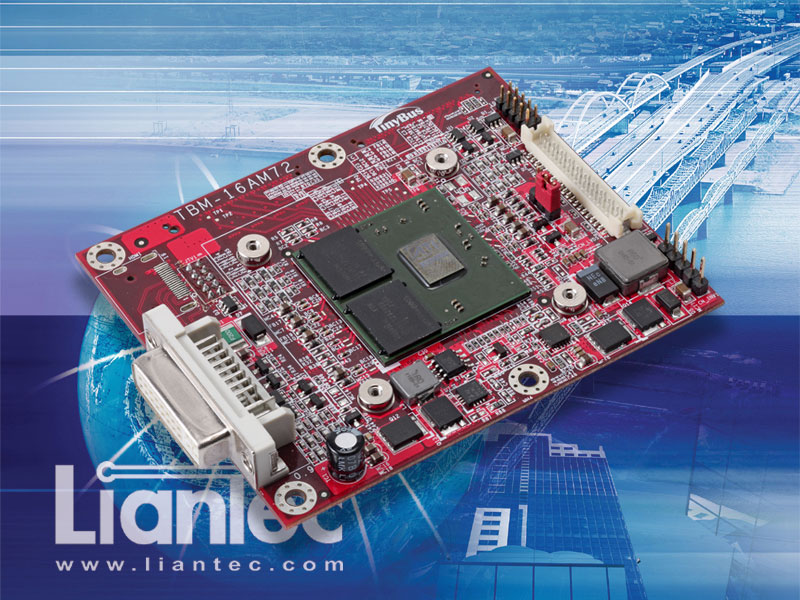

Liantec TBM-16AM72 Tiny-Bus x16 PCIe AMD-ATi M72 Radeon E2400 128MB GDDR3 Graphics Module

Click for Photo Gallery

The TBM-16AM72 Tiny-Bus® graphics module is based on the x16 PCI-Express AMD-ATi embedded Radeon E2400 M72 GPU with on-chip 128MB GDDR3 of video memory, offering the embedded modular 3D graphics solution for the industrial small form factor (SFF) embedded x86-based graphics computing applications.

General Specification

► Tiny-Bus® Modular Extension Solution with x16 PCI Express Graphics interface.

► Onboard AMD-ATi embedded Radeon E2400 M72 GPU with 128MB GDDR3 VRAM.

► Hardware H.264/VC-1 decoding of blu-ray and HD DVDs.

► Hardware MPEG-1, MPEG-2, MPEG-4/DivX video decode acceleration.

► MPEG-2, MPEG-4, DivX, WMV9, VC-1, H.264/AVC encode / transcode.

► Two independent display controllers, drive two displays simultaneously with independent

    resolutions, refresh rates, color controls and video overlays for each display.

► On-chip 128MByets 64-bit GDDR3 VRAM.

► VGA supports up to WXGA (1920 x 1200) and QXGA (2048 x 1536).

► DVI supports up to WXGA (1920 x 1200) of resolution.

► HDTV supports up to 1080p mode.

► Microsoft DirectX 10 and Windows Vista, OpenGL 2.0 support.

External / Internal Connector

► External DVI-I connector with DVI and VGA output.

► Onboard 40-pin Hirose DF13-40DP-1.25V LVDS connector.

► Onboard VGA pin header, cable connection with VGA port on motherboard.

Cable Kit

► Auxiliary +12V power cable.

► module-to-motherboard VGA cable.
